Laser Micromachining Systems

Whether your requirement is for an industrial-grade manufacturing tool or a system dedicated to research, we have an array of laser micromachining products to match your needs. All systems can be supplied with a wide range of lasers to meet the application requirements. Contact us to discuss your application and requirements.

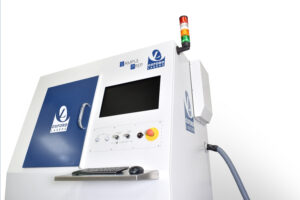

SamplePrep System (for XRM)

Sample Preparation Laser Tool for X-Ray Microscopy (XRM)

Oxford Lasers precision micromachining systems
  • Step by step laser process
  • Programmable sample sizes
  • Compatible with 3D X-ray microscopes
  • Versatile material range

Specific and refined, the SamplePrep System is a laser-based micromachining tool preconfigured to prepare micro samples for X-ray microscopy (XRM).

The system is capable of producing micro-pillars with diameters measuring from tens to hundreds of microns from macroscopic bulk samples. Built with an integrated vision system, users are able to identify and target a specific area from the bulk (macro) sample in which to take the pillar (micro) sample, ensuring the user retains control over sample choice. Programmed with our advanced laser processing capability, the SamplePrep Tool is capable of processing a wide range of materials such as rock, ceramics, metals and semiconductors.

Please contact us for more information on the SamplePrep system.

SamplePrep Specifications
Laser Type
Diode Pumped Solid State (DPSS)
1470 W x 1200 D x 1950 H (mm)
Product Weight

Sample Preparation Contract Services

Oxford Lasers also provides precision laser micromachining contract services. Read more about our capabilities for preparing samples on behalf of customers for use in XRM nanoscale evaluations.

Laser Systems Comparison Table

Laser Type
Wavelength Options
Dimensions (W x D x H in mm)
A Series
Compact, entry-level turnkey laser system
nanosecond or femtosecond
1470 x 1500 x 1950
up to 1500kg
C Series
High throughput production system
nanosecond, picosecond or femtosecond
2800 x 1700 x 2040
up to 2700kg
J Series
Largest, high-powered system with multiwavelength option
up to any two of: nanosecond, picosecond or femtosecond
Up to any two of: 355nm/532nm/1064nm
Dependent on laser type and options
Dependent on laser type and options
ProbeDrill System
Preconfigured system for semiconductor guide plate probe card drilling
Diode pumped solid state (DPSS)
2800 x 1700 x 2040
SamplePrep System
Preconfigured system for preparing micro samples for X-ray microscopy (XRM)
Diode pumped solid state (DPSS)
1470 x 1200 x 1950
