Laser Micromachining Systems
Whether your requirement is for an industrial-grade manufacturing tool or a system dedicated to research, we have an array of laser micromachining products to match your needs. All systems can be supplied with a wide range of lasers to meet the application requirements. to discuss your application and requirements.

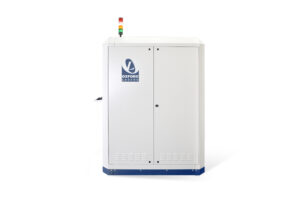

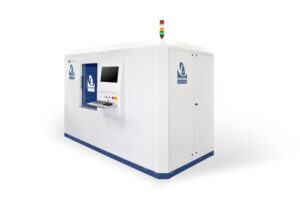

C Series
Flexible Laser Micromachining System for Production or R&D
- Robust: Designed for 24/7 operation
- Easy to use: Pre-programmed processes to reduce operator involvement
- Configurable: Choice of nano, pico or femtosecond pulsed laser with motion control options
- Stability: Granite frame with vibration isolation provides stable drilling process

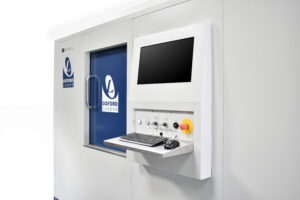

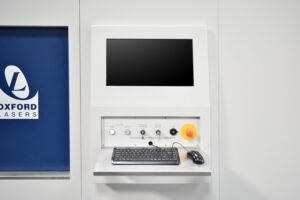

- Functionality: Cimita control software simplifies the process from CAD direct to production
Efficient and robust, the C Series platform is a turnkey laser micromachining tool with a bigger footprint than the A Series and the flexibility of customisation for high-throughput production or R&D applications.
Having spent over 45 years working with lasers and laser technology we wanted to design a robust production tool suitable for our own high-volume contract services laboratory and also offer to our customers. On that basis, the C Series was born. This platform is built to operate in the most rigorous of continuous production environments with the flexibility of customising through choice of lasers and motion controllers and optimised to your specific requirements. The C Series is typically used for industrial production but is equally suited to pilot production runs and research and development applications where a high level of precision is required.
Please contact us for more information on the range of options and accessories available for the C Series.
C Series Specifications
Category | Specification |
|---|---|
Laser Type |
Nanosecond, Picosecond, or Femtosecond |
Wavelength Options |
355nm/ 532nm/ 1064nm |
Dimensions |
2800 W x 1700 D x 2040 H (mm) |
Product Weight |
2700kg (dependant on laser type and options) |
Power and Control Autonomy for High Speed Locomotion With an Insect-Scale Legged Robot
Application: Microrobotics. https://doi.org/10.1109/LRA.2018.2793355 (external link, opens new window)
Inverted and vertical climbing of a quadrupedal microrobot using electroadhesion
Application: Microrobotics. https://doi.org/10.1126/scirobotics.aau3038 (external link, opens new window)
Nitinol living hinges for millimeter-sized robots and medical devices
Application: Microrobotics and Medical Devices. https://doi.org/10.1109/ICRA.2019.8794091 (external link, opens new window)
Pop-up-inspired design of a septal anchor for a ventricular assist device
Application: Microrobotics and Medical Devices. https://doi.org/10.1115/DMD2017-3458 (external link, opens new window)
The milliDelta: A high-bandwidth, high-precision, millimeter-scale Delta robot
Application: Microrobotics. https://doi.org/10.1126/scirobotics.aar3018 (external link, opens new window)
A Highly Stretchable Capacitive-Based Strain Sensor Based on Metal Deposition and Laser Rastering
Application: Wearable Sensors. https://doi.org/10.1002/admt.201700081(external link, opens new window)
Alumina and Silicon Oxide Sidewall Passivation for P- and N-Type Sensors
Application: Sensors. https://doi.org/110.1016/j.nima.2012.04.077 (external link, opens new window)
Laser-Machined Tantalum Collimator for Space Applications
Application: Tantalum X-ray collimator, large telescope space. https://doi.org/10.2961/jlmn.2013.02.0012 (external link, opens new window)
Application: Sensors. https://doi.org/10.1016/j.sse.2012.12.006 (external link, opens new window)
Application: Tissue engineered nerve guides. https://doi.org/10.1002/jbm.a.34952 (external link, opens new window)
Laser Systems Comparison Table
Product | Description | Laser Type | Wavelength Options | Dimensions (W x D x H in mm) | Weight |
|---|---|---|---|---|---|
A Series |
Compact, entry-level turnkey laser system |
nanosecond or femtosecond |
355nm/532nm/1064nm |
1470 x 1500 x 1950 |
up to 1500kg |
C Series |
Versatile high throughput production and R&D system |
nanosecond, picosecond or femtosecond |
355nm/532nm/1064nm |
2800 x 1700 x 2040 |
up to 2700kg |
J Series |
Largest, high-powered system with multiwavelength option |
up to any two of: nanosecond, picosecond or femtosecond |
Up to any two of: 355nm/532nm/1064nm |
Dependent on final laser type and options |
Dependent on final laser type and options |
ProbeDrill System |
Preconfigured system for semiconductor guide plate probe card drilling |
Diode pumped solid state (DPSS) |
355nm/532nm/1064nm |
2800 x 1700 x 2040 |
2600kg |
SamplePrep System |
Preconfigured system for preparing micro samples for X-ray microscopy (XRM) |
Diode pumped solid state (DPSS) |
355nm/532nm/1064nm |
1470 x 1200 x 1950 |
1200kg |
